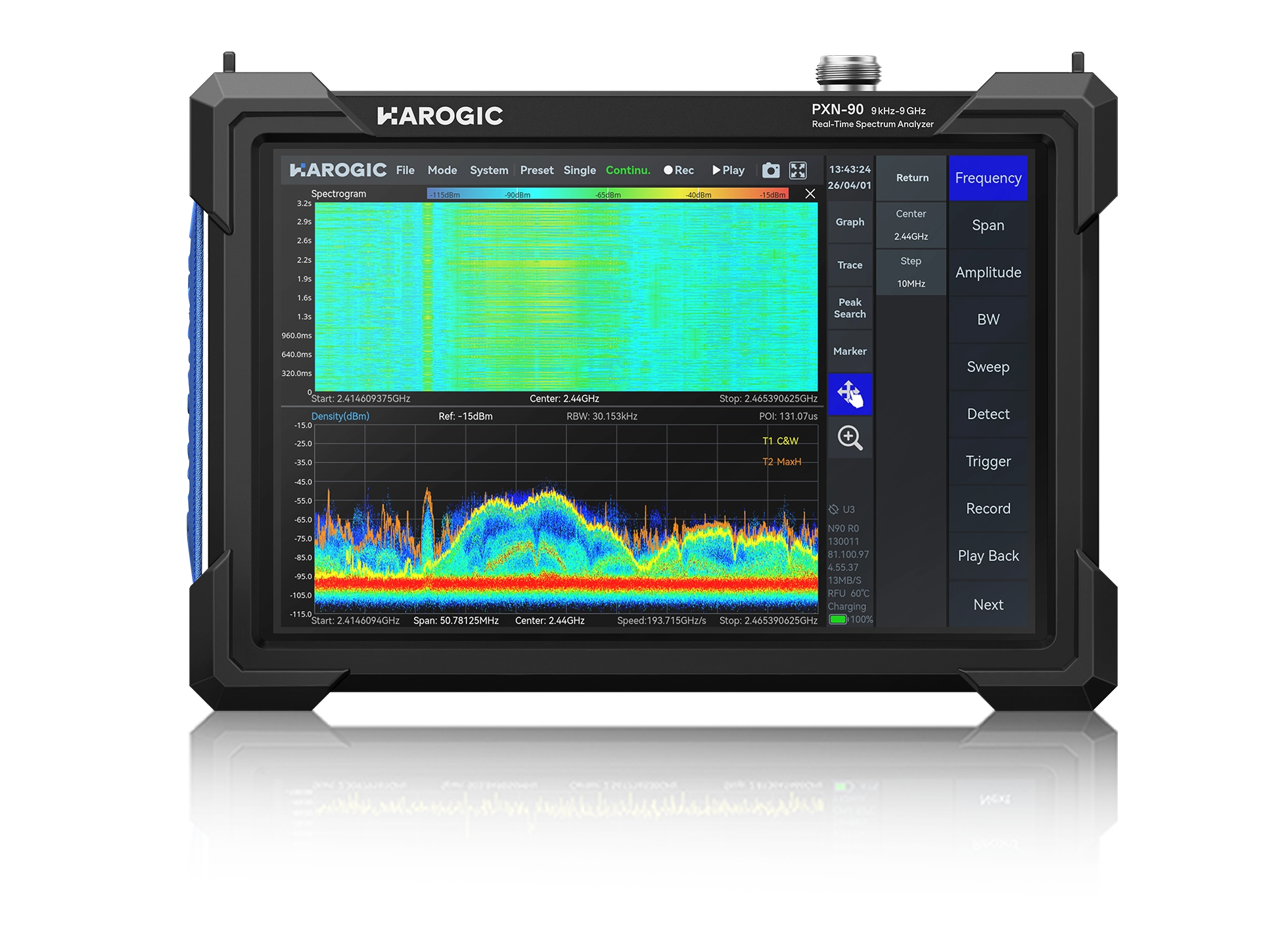

HAROGIC PXN-90

Description

HAROGIC PXN-90 is a handheld real-time spectrum analyzer covering 9kHz -9 GHz. The PX Series combines a 10.1-inch touchscreen, integrated battery operation, 100 MHz analysis bandwidth and rapid RF analysis for laboratory, field and maintenance applications.

Key highlights:
• Frequency range: 9kHz -9 GHz
• Analysis bandwidth: 50 MHz std/100 MHz opt
• 10.1-inch multi-touch display
• Approximately 1.5 kg portable format
• Typical battery operation around 2.5 hours
• Standard RF analysis functions including spectrum, zero span, OBW and phase-noise measurements
• Options include GNSS, tracking generator, digital modulation/pulse analysis and EMI pre-compliance (model dependent)
